Product Introduction

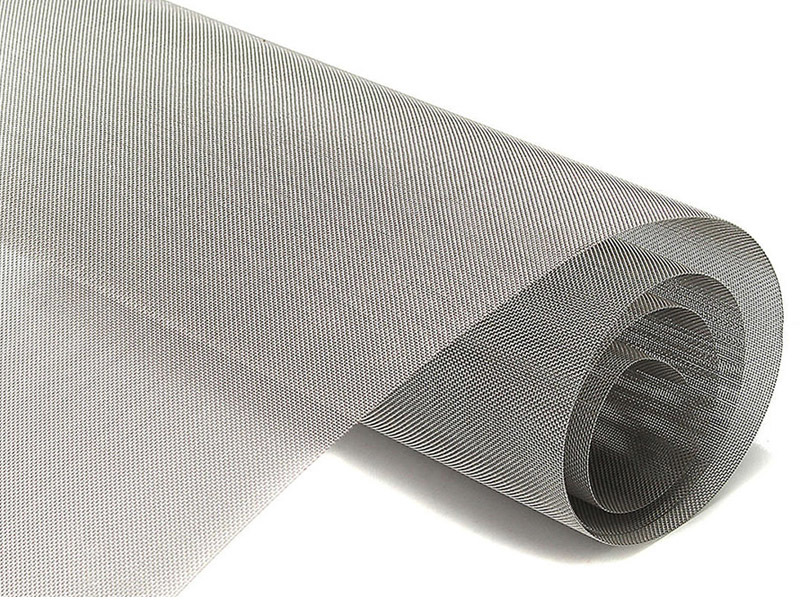

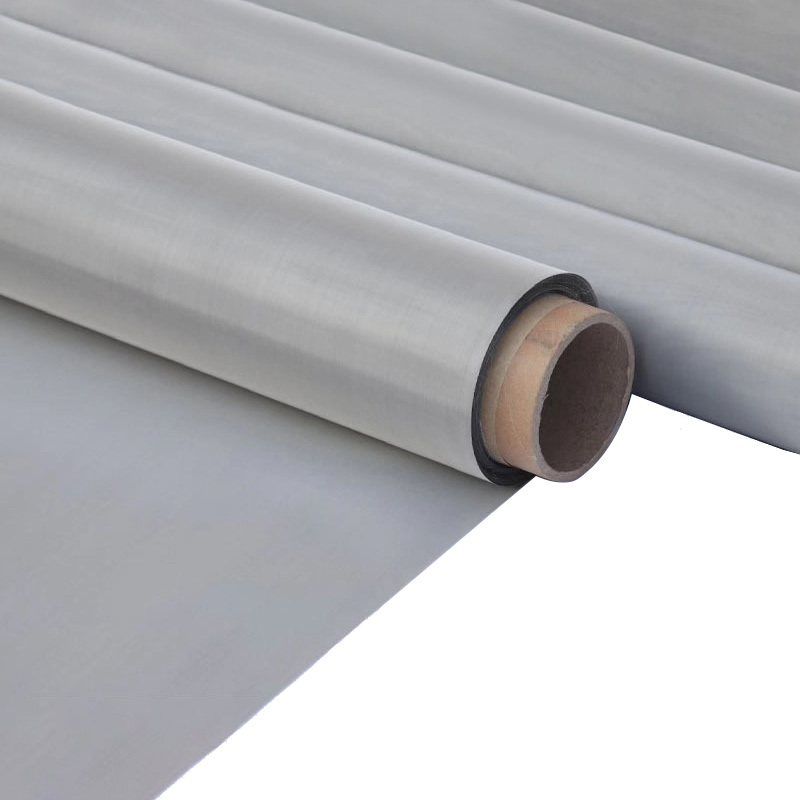

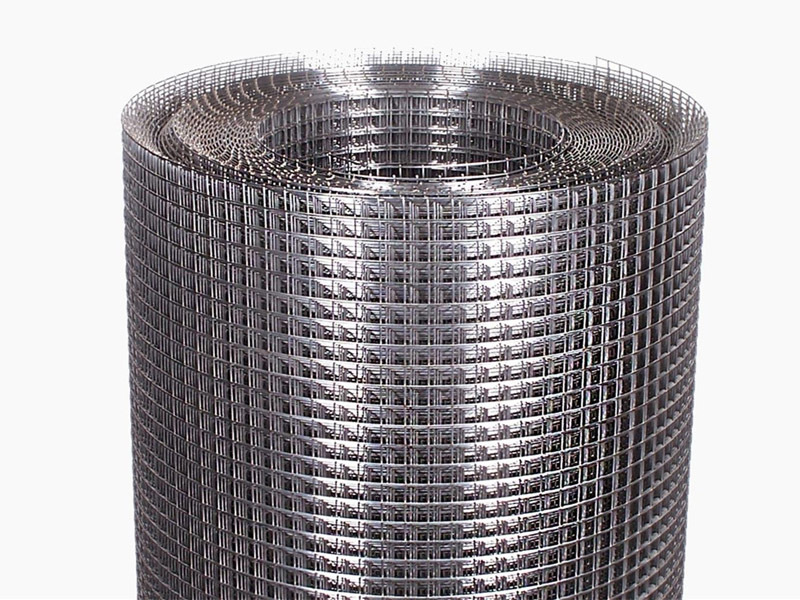

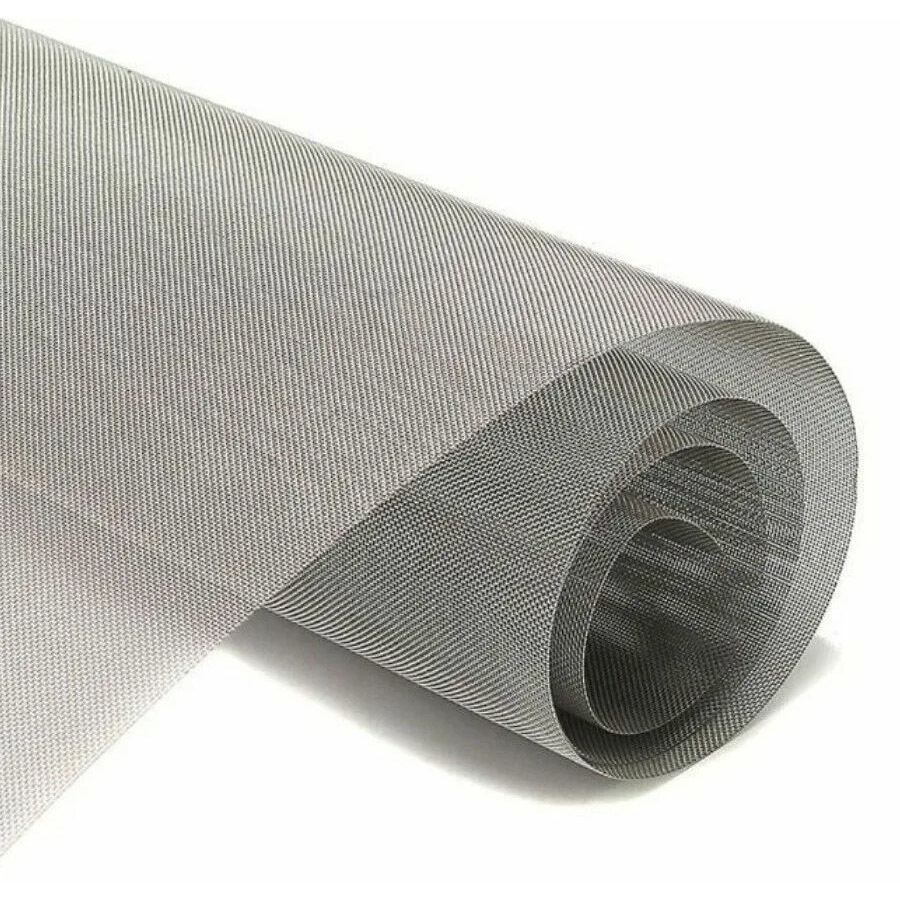

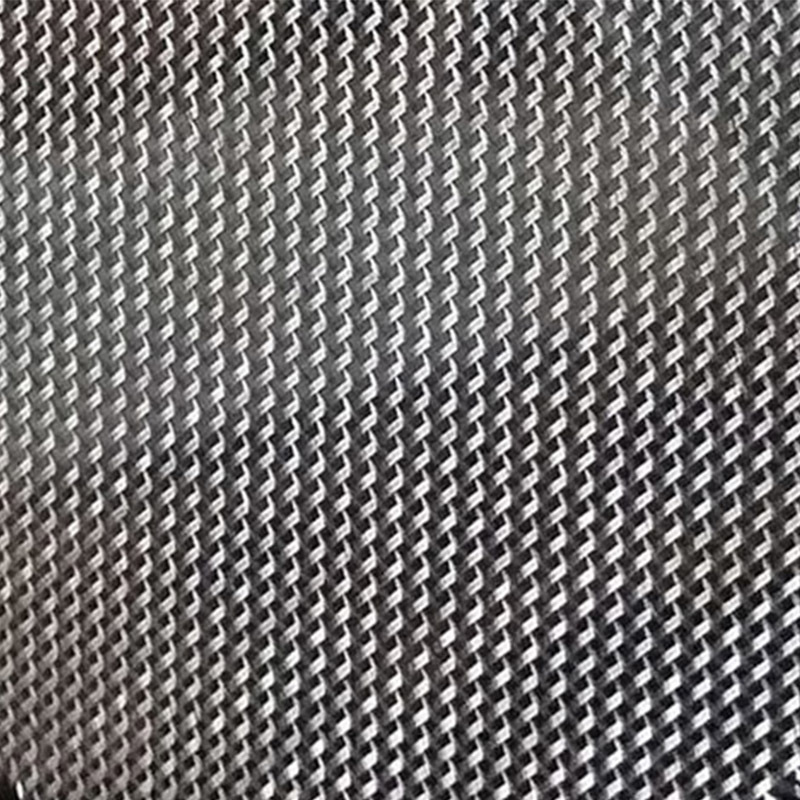

Stainless steel wire mesh, made from durable and corrosion-resistant stainless steel alloys such as 304, 316, or 316L, is used in a variety of applications. It comes in different mesh sizes and wire gauges, making it suitable for everything from industrial filtration and architectural features to food processing and security barriers. Its strength and ability to withstand harsh conditions make it ideal for both indoor and outdoor uses across multiple industries.

Material and Specification

Common materials: including 304, 316, 201, 302, etc. Among them, 304 material has strong corrosion resistance and high cost performance, and is suitable for fields such as food processing. Material 316 has strong resistance to chloride ion corrosion and is commonly used in Marine engineering, chemical and other environments. Material 201 has relatively high strength but weak corrosion resistance, and can be used for temporary protective nets, etc.

Specification parameters: mainly include mesh count, wire diameter, mesh size, thickness and width, etc. Mesh count refers to the number of mesh holes per unit area. The higher the mesh count, the smaller the mesh holes and the higher the screening accuracy. The wire diameter range is generally between 0.3 and 8mm. Fine wires are used for precision filtration, while thick wires are used for reinforcement and protection. The thickness is usually 0.1-5mm and the width is 0.5-3m.

Features

Strong corrosion resistance: Containing elements such as chromium and nickel, it can resist the corrosion of acids, alkalis and other chemical substances, and is suitable for various harsh environments.

High strength: It has high tensile and compressive strength, can withstand considerable pressure and tension, and is not prone to deformation.

Easy to maintain: The surface is smooth, not prone to adhering impurities, easy to clean, and not prone to rust, with a long service life.

Elegant and stylish: It has a metallic luster, a neat and beautiful appearance, and can be used in the decoration field to enhance the overall aesthetic appeal.

Application field

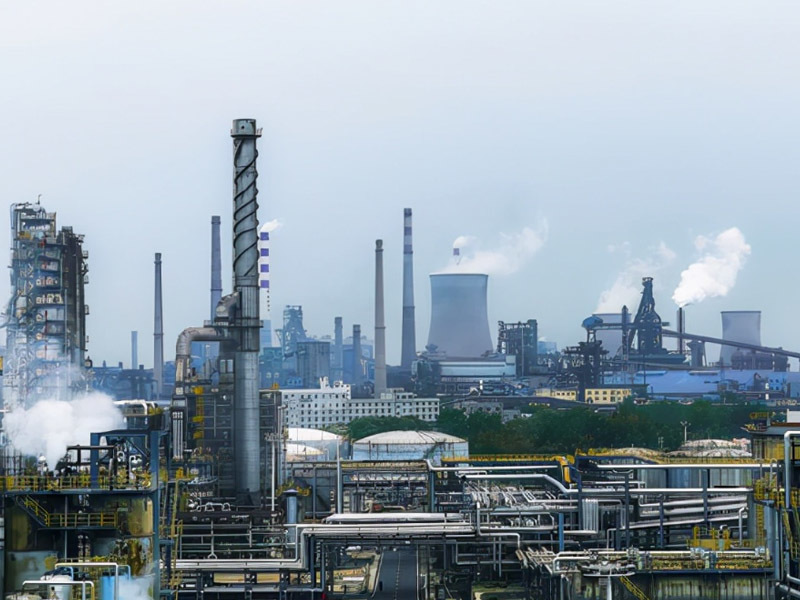

In the industrial field: It is used for screening and filtration in acidic and alkaline environmental conditions, such as as a mud screen in the petroleum industry, a screening and filtering screen in the chemical and chemical fiber industry, etc. It can also be used for equipment protection in mechanical manufacturing and covering motor fan blades.

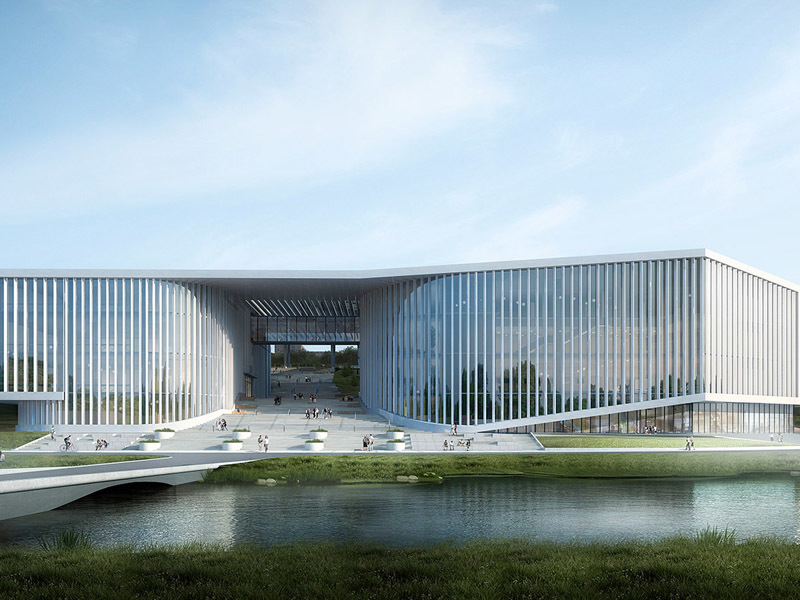

In the field of architecture: It can be used as window and door screens, providing both ventilation and mosquito prevention. It can also be applied to building curtain walls, ceilings, fences, etc., serving both decorative and protective purposes.

In the food industry: It is used for filtration and screening in food processing, such as fruit juice filtration and flour screening, and meets food hygiene standards.

In the agricultural field: It can be used in horticulture and agriculture to create animal enclosures, protect crops from birds and pests, and also be used for the protection of ventilation openings in greenhouses, etc.
